FRCABLE 1500V Aluminum Solar Cable – TÜV 2PfG 2642

The 1500V aluminum solar cable from FRCABLE is designed for photovoltaic cable applications requiring an aluminum alloy conductor and a rated DC voltage of 1500V. Listed on Pinpoki, this product is an option for solar project developers, electrical distributors, EPC contractors, and wholesale buyers evaluating cable solutions for photovoltaic installations.

The published product information identifies a stranded aluminum alloy conductor, cross-linked insulation, and an outer sheath available in black or red. The cable is listed under the TÜV 2PfG 2642 standard for aluminum photovoltaic cable. Buyers should verify the applicable certificate, installation scope, and current technical datasheet for the exact product configuration before specifying it for a project.

1500V Aluminum Solar Cable for PV Projects

A 1500V aluminum solar cable is a product option for photovoltaic projects where the selected cable construction and certified rating meet the electrical design requirements. Compared with copper-conductor cable, aluminum alloy conductors use a different material and electrical resistance profile. As a result, buyers should assess conductor size, resistance, installation conditions, and termination compatibility rather than treating aluminum and copper cables as interchangeable.

FRCABLE identifies this product as PV1500DC-AL and lists a rated voltage of 1500V DC. The applicable use depends on the product's certified construction and installation requirements. Engineering teams should confirm whether the cable is approved for the intended routing method, including any restrictions associated with protected or fixed installations.

The TÜV 2PfG 2642 designation is an important reference when reviewing this aluminum PV cable. TÜV Rheinland lists 2PfG 2642 among the standards used for photovoltaic aluminum cable certification. Buyers should request the current certificate and verify that its scope matches the cable type, construction, and part number being purchased.

Stranded Aluminum Alloy Conductor

The published specification identifies a stranded aluminum alloy conductor with Class 5 construction. This is a defining characteristic of the PV1500DC-AL product and distinguishes it from the copper-conductor solar cables also offered in the FRCABLE range.

Conductor material affects electrical resistance and the conductor cross-section required for a specific installation. When comparing cable quotations, verify the nominal cross-sectional area, maximum conductor resistance, and applicable current-carrying requirements for the project.

The available conductor sizes listed for this product are 4.0 mm², 6.0 mm², and 10 mm². The correct size should be determined by the responsible electrical designer based on current, voltage drop, installation method, ambient conditions, and applicable regulations.

Because aluminum alloy and copper conductors have different electrical characteristics, buyers should also confirm that connectors, terminals, and other system components are compatible with the selected conductor material. Do not substitute an aluminum cable for a copper cable solely on the basis of matching cross-sectional area.

Cross-Linked Insulation and Protective Outer Sheath

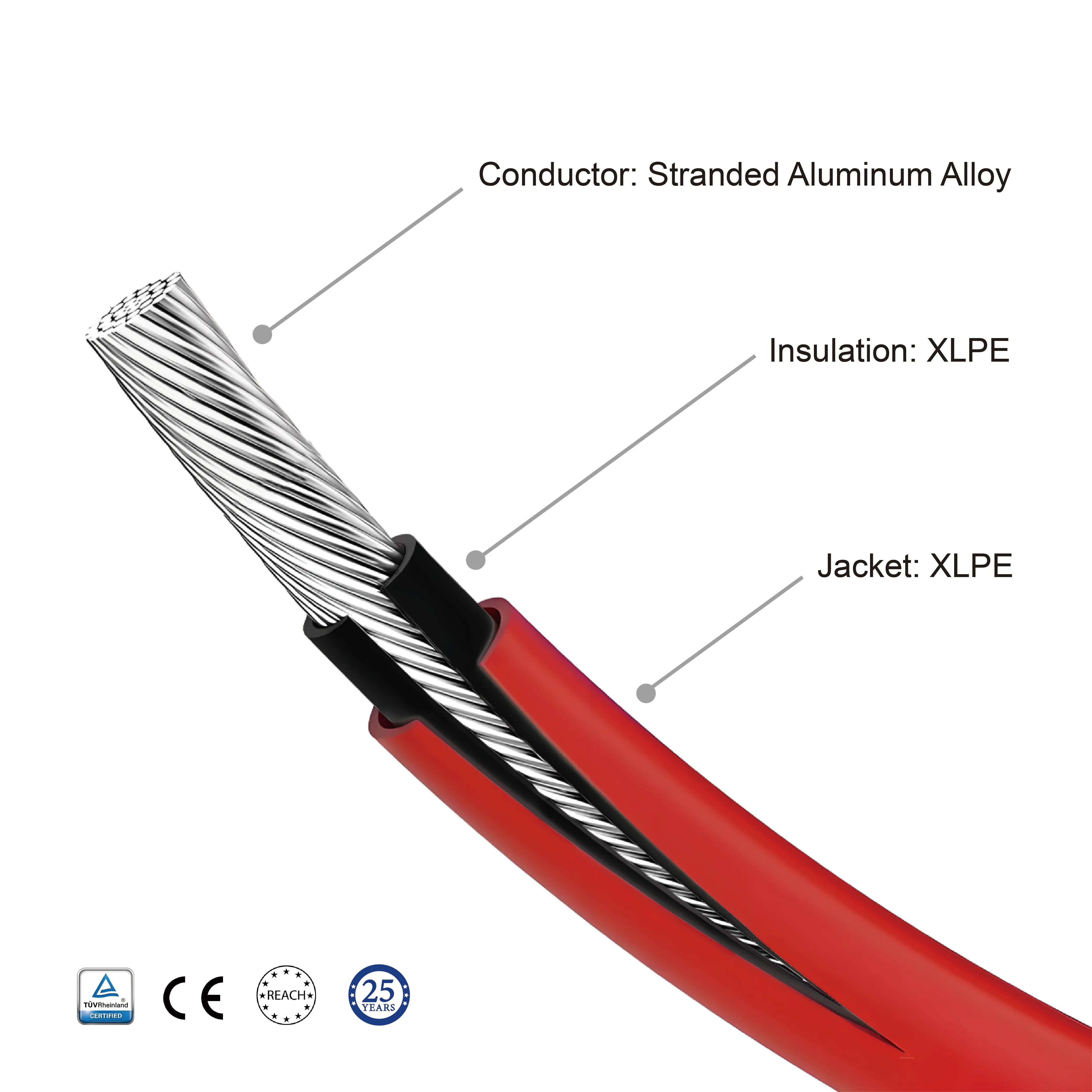

FRCABLE's published product data identifies cross-linked insulation in black and an outer sheath available in black or red. The red and black options shown in the product image can help distinguish conductors within a PV wiring arrangement when used according to the system's wiring design.

The supplier describes the compound as cross-linked and lists resistance to UV radiation, ozone, fluids, oil, salt, and general weathering. It also identifies halogen-free, flame-retardant, and low-smoke characteristics. Buyers should check the supporting test reports and applicable certificate before using these claims as formal compliance statements.

The product listing specifies an insulation thickness of 0.70 mm and a jacket thickness of 0.80 mm for the listed cable sizes. The corresponding outer diameter varies by conductor cross-section. These dimensions should be confirmed against the current datasheet for the selected part number.

Cable construction details matter when planning cable routing, connector selection, and installation clearances. For project procurement, request complete dimensional data rather than relying on the product name alone.

Rated Voltage and Temperature Conditions

The published product specification lists a rated voltage of 1500V DC. It also lists an AC voltage designation of U0/U 1000/1000V, a maximum permitted operating voltage of 1800V DC, and a test voltage of 6500V.

These values describe different ratings or test conditions and should not be treated as interchangeable. The cable must be used within the limits defined by the applicable standard, certificate, approved technical documentation, and project requirements.

The product page lists a rated temperature range of -40°C to +90°C. A separate section of the supplier's technical information also refers to an operating temperature range extending to +120°C. Buyers should ask FRCABLE to clarify the definitions and conditions for these values before incorporating them into a specification. Ambient temperature, conductor operating temperature, and limited-duration temperature conditions are not necessarily the same.

For critical installations, the current datasheet and certificate should take precedence over a general product description.

Available Cable Sizes and Colors

The published PV1500DC-AL range lists three conductor cross-sections: 4.0 mm², 6.0 mm², and 10 mm². Both black and red sheath options are listed for these sizes.

The product data gives the following nominal dimensions:

• 4.0 mm²: Approximately 5.7 mm outer diameter.
• 6.0 mm²: Approximately 6.2 mm outer diameter.
• 10 mm²: Approximately 7.2 mm outer diameter.

The published maximum conductor resistance values are 5.09 mΩ/m for 4.0 mm², 3.39 mΩ/m for 6.0 mm², and 1.95 mΩ/m for 10 mm². Buyers should verify the units and values against the latest datasheet before using them in engineering calculations.

These dimensions and resistance figures provide a starting point for product comparison. Final cable selection should be based on the design current, allowable voltage drop, installation method, environmental conditions, and applicable electrical requirements.

Wholesale Aluminum Solar Cable Sourcing Through Pinpoki

For solar project developers, EPC contractors, and electrical distributors, sourcing an aluminum solar cable involves verifying both technical suitability and commercial requirements. Buyers should confirm conductor size, jacket color, voltage rating, installation scope, packaging, available quantities, and relevant certificates before placing an order.

Pinpoki helps international buyers discover products and explore potential suppliers from China. This FRCABLE listing provides a starting point for reviewing the PV1500DC-AL cable and requesting product details for a particular project.

Browse the Pinpoki Solar Cable category to compare related cable products. You can also visit the FRCABLE supplier store on Pinpoki to explore other products listed by the same supplier.

Before confirming a purchase, request the current datasheet and applicable TÜV certificate for the exact cable configuration. Clarify minimum order quantities, pricing, sample availability, delivery schedules, and packaging requirements with the supplier.

What to Confirm Before Ordering

Before purchasing this 1500V aluminum solar cable, verify the following information:

• Conductor material: Confirm stranded aluminum alloy and the required cross-sectional area.
• Cable construction: Check insulation and sheath materials, thicknesses, and outer diameter.
• Voltage rating: Verify the 1500V DC rating and any other listed voltage values against the applicable documentation.
• Temperature limits: Clarify the rated temperature, ambient temperature, and any separately stated operating temperature conditions.
• Installation scope: Confirm the permitted installation methods under the applicable TÜV 2PfG 2642 certification.
• Connector compatibility: Ensure that terminals and connectors are suitable for the specified aluminum alloy conductor.
• Commercial details: Confirm price, quantities, available colors, lead time, packaging, and delivery terms.

These checks help purchasing teams select a product that aligns with the engineering specification and the requirements of the intended installation.

Frequently Asked Questions

What is a 1500V aluminum solar cable used for?

It is an aluminum-conductor cable product intended for photovoltaic applications within its approved specification. The permitted installation method and system compatibility must be confirmed from the applicable certificate and technical datasheet.

What is TÜV 2PfG 2642?

TÜV 2PfG 2642 is a specification used for aluminum photovoltaic cable certification. TÜV Rheinland lists 2PfG 2642 among its photovoltaic component standards. Buyers should verify the current certificate and scope for the selected product.

Which conductor sizes are available for this FRCABLE cable?

The published product table lists 4.0 mm², 6.0 mm², and 10 mm² versions, with black and red sheath options. Confirm current availability and the applicable part number with the supplier.

What is the rated voltage of the PV1500DC-AL cable?

FRCABLE lists a rated voltage of 1500V DC. The published technical information also includes other voltage and test values, which should be interpreted according to the applicable specification rather than used interchangeably.

Can aluminum solar cable replace copper solar cable?

Not as a direct, automatic substitution. Aluminum alloy and copper conductors differ in electrical resistance and termination requirements. The cable size, connector compatibility, and system design must be evaluated by the responsible electrical designer.

How can I source FRCABLE aluminum solar cable through Pinpoki?

Browse the Pinpoki Solar Cable category, open the FRCABLE product listing, and request the current datasheet, TÜV certificate, quotation, and delivery terms for your required cable size and quantity.
